MS25219H
NOTES:
1. Dimensions in inches.
2. Unless otherwise specified, tolerances: decimals: ±0.010, angles: ±1°.
3. Parts undimensioned are at the manufacturer's discretion.
4. For government procurement only. Lamps shall not be furnished with the light assembly.
5. The ground terminal may be configured in accordance with the standard or alternate lug styles as depicted herein.

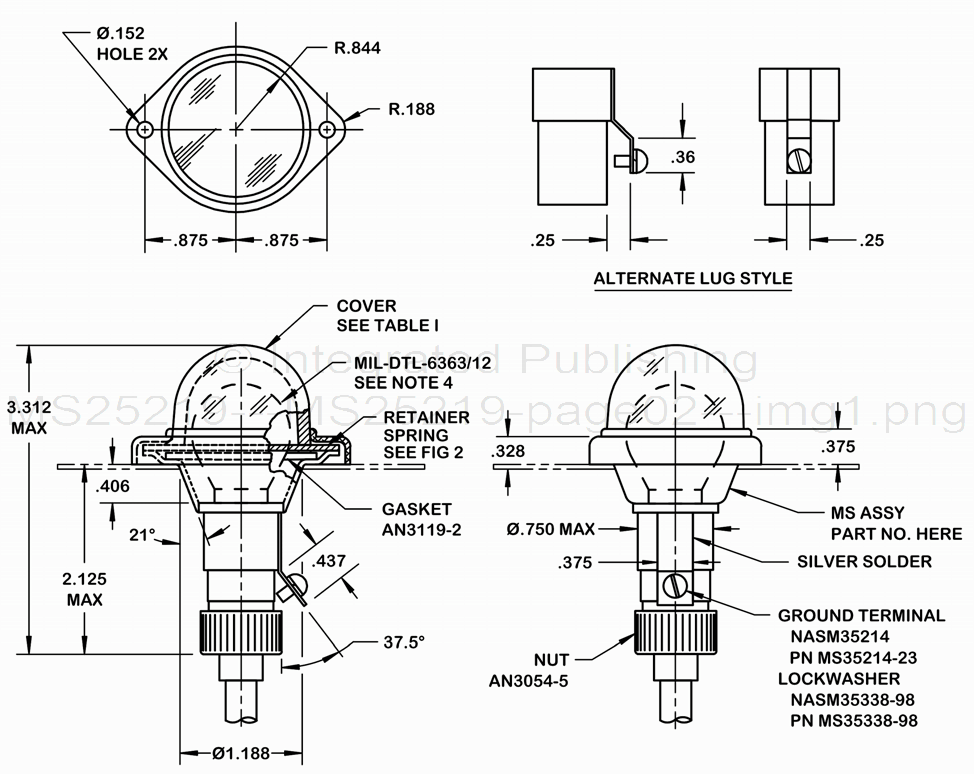

FIGURE 1. Aircraft navigational and warning light.
2
