MS25219H
NOTES:
1. Dimensions in inches.
2. Unless otherwise specified, tolerances: decimals: ±0.010, angles: ±1°.

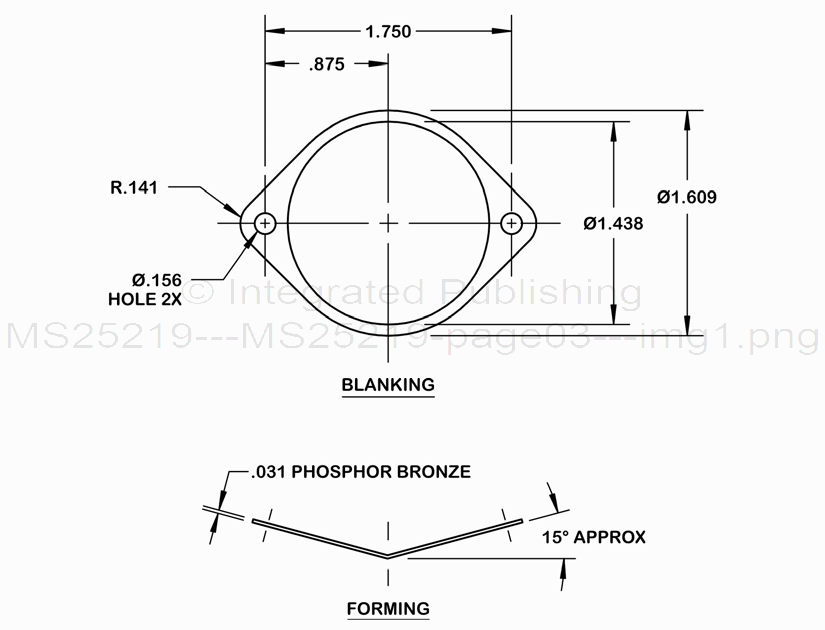

FIGURE 2. Retainer spring. REQUIREMENTS:
Dimensions shall be in accordance with figure 1 and figure 2. Configurations shall be in accordance with table I and table II. Weight: 0.25 pounds maximum.
Material: All materials shall be non-magnetic.
All part numbers described under this specification shall include gasket and retainer spring
(see figure 1 and table I).
The part number shall be marked on the assembly and shall indicate the complete assembly without lamp (see figure 1 and table I).
The part number for the assembly with lamp shall consist of the assembly MS part number with an additional dash number indicating the trade number of the lamp. Example:
MS25219-16-1683 = light assembly furnished with one MIL-DTL-6363/12 part number M6363/12-2 lamp (see table II). This part number shall be used for shipping container marking only.
